Piantine! - Clovers!

MUSIC for PLANTS - Experiment #12

After test plant clean up, new seeds, we restarted on April 19 with experiment 12

This is an experiment on communication with clover plants through music.

We have two soundproof boxes, that contain two sets of seeds/plants.

In one box we periodically expose the plants to a specifically composed music, another box is in complete silence.

We observe the results over time, keeping all environmental parameters identical, except for music.

10 seeds per petri dish    -    Lights ON (day) at 8    Lights OFF (night) at 18    Music ON for 30 minutes (4 loops of music) at 8:01, 11:01, 14:01, 17:01

Context:

CPU temp=36.5°    Now lamps are: OFF     Sound: (silence..)

External probe updated at 06:51:52    Temp=13.9°C    Hum=89.8%

Current date and time: 04-25-2024 06:52     Your IP:3.135.246.193    Visits from last reboot = 16

IPCamRES errors: 0  IPCamDX errors: 0  IPCamSX errors: 0   Sound play errors: 0   File copy errors: 0

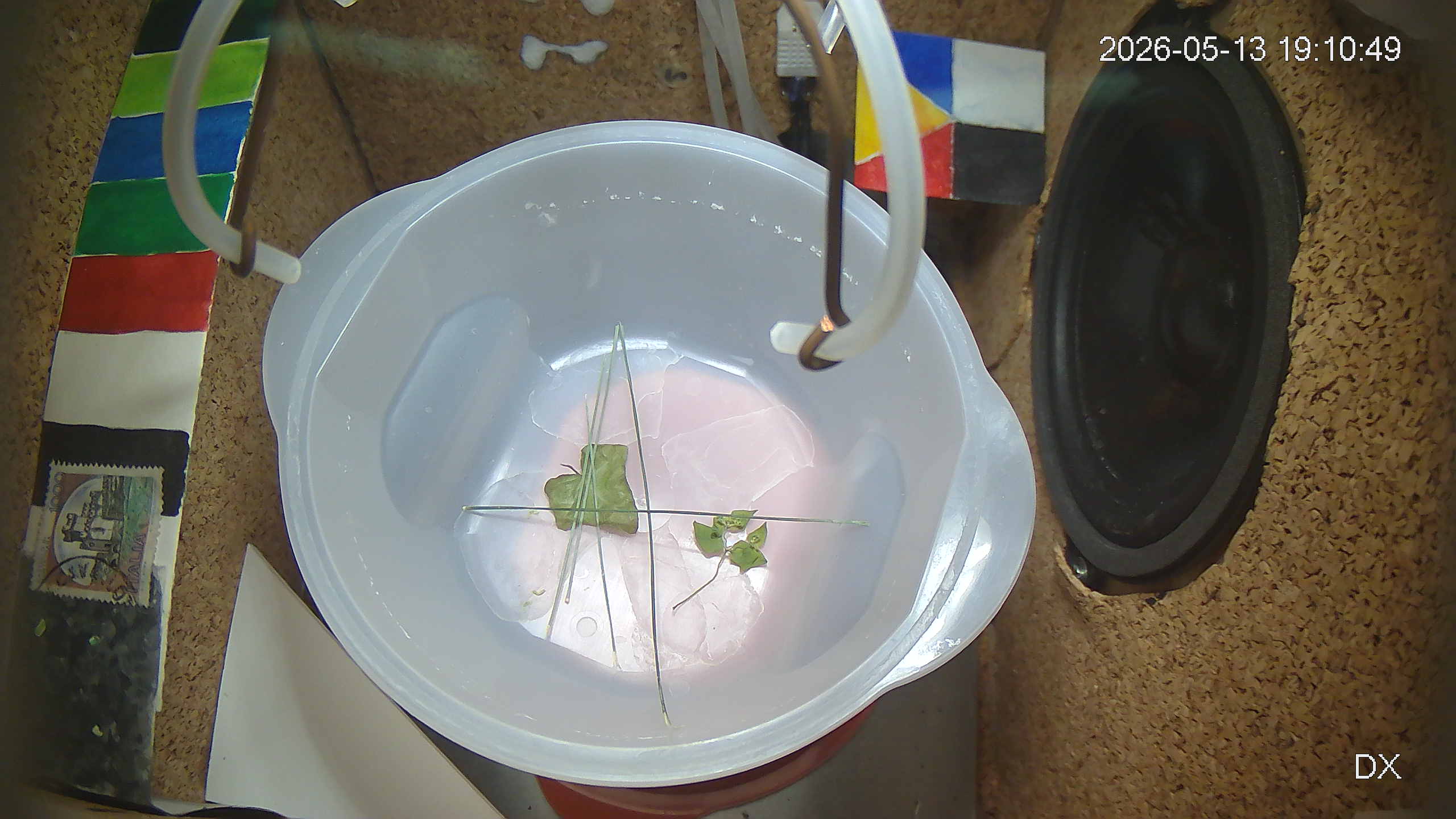

DX BOX (right)

Probe updated at 06:51:52    Temp=14.8°C    Humidity=70.2%

Heating is OFF

Image updated at 06:46:10

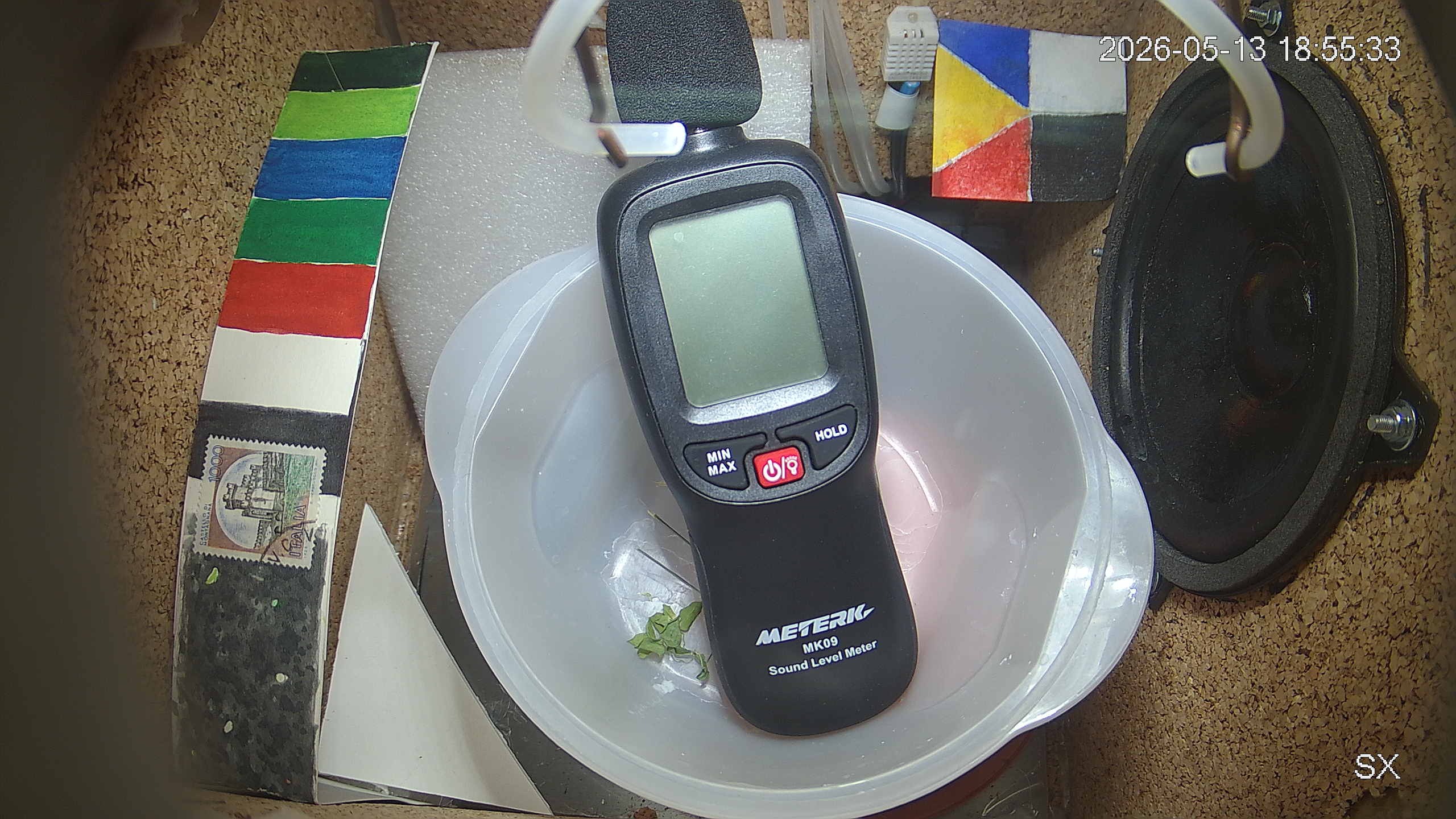

SX BOX (left)

Probe updated at 06:51:52    Temp=14.6°C    Humidity=70.6%

Heating is OFF

Image updated at 06:46:10

WATER Reservoir

Image updated at 06:46:10

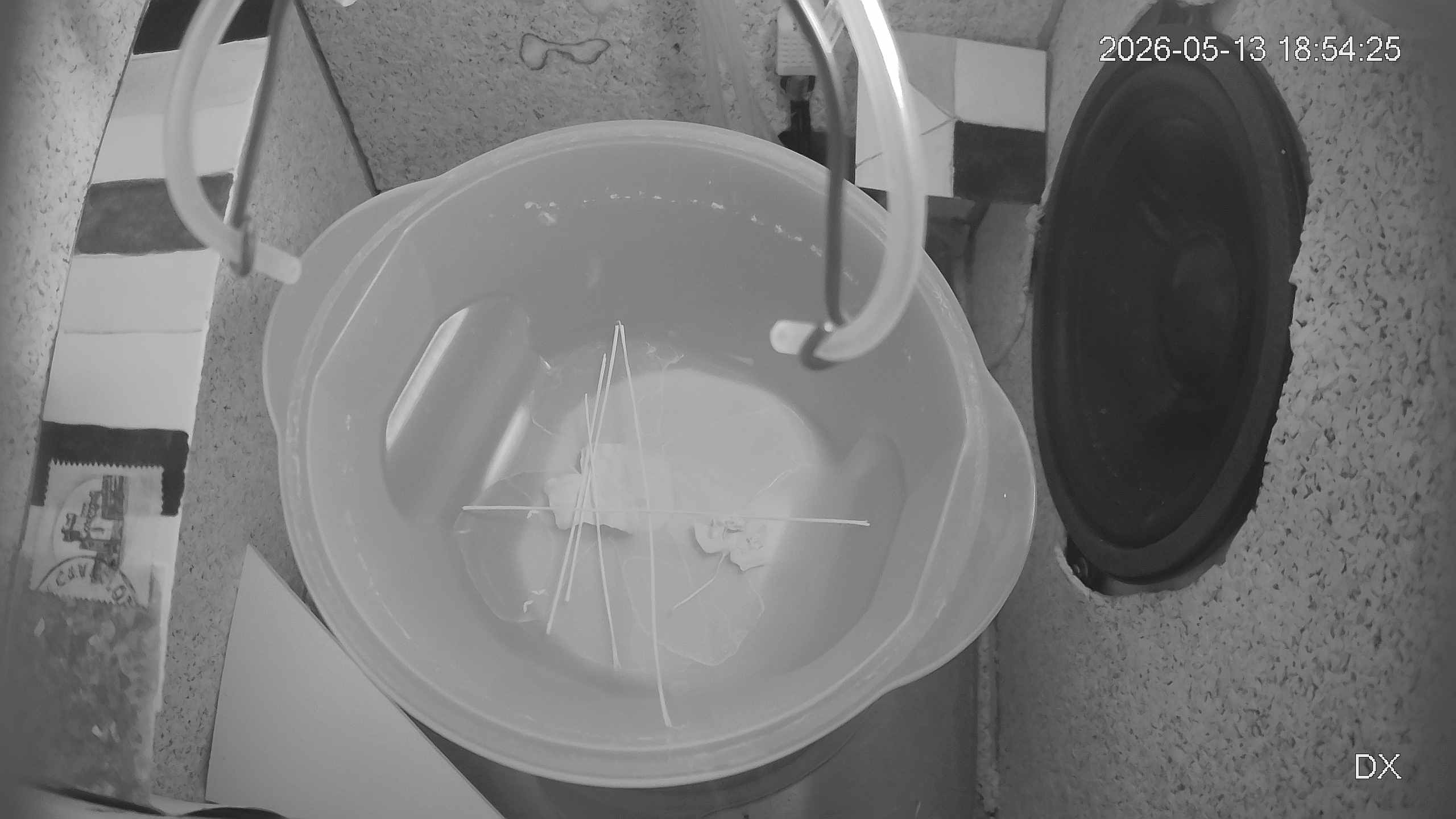

DX IR IMAGE

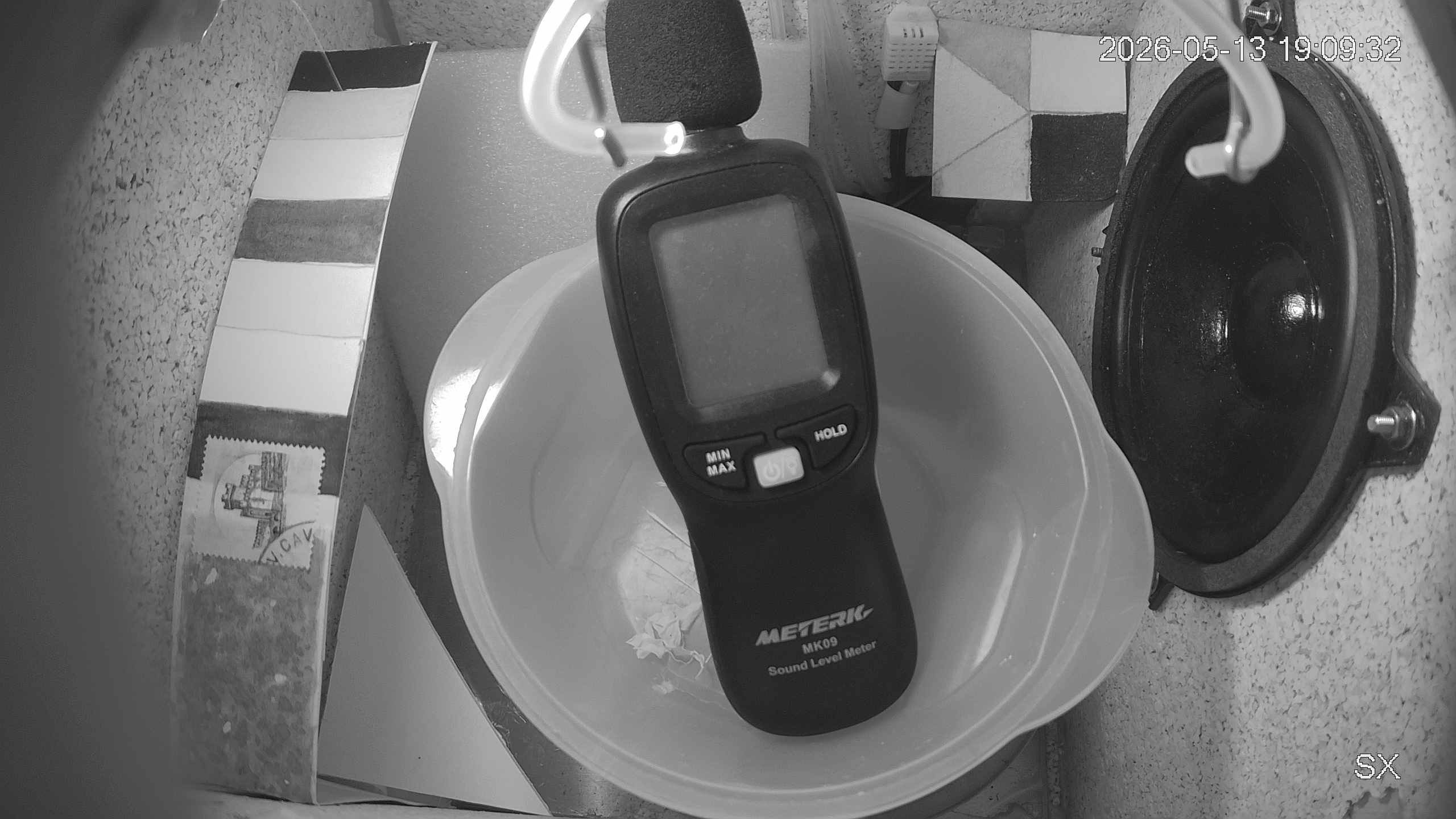

SX IR IMAGE

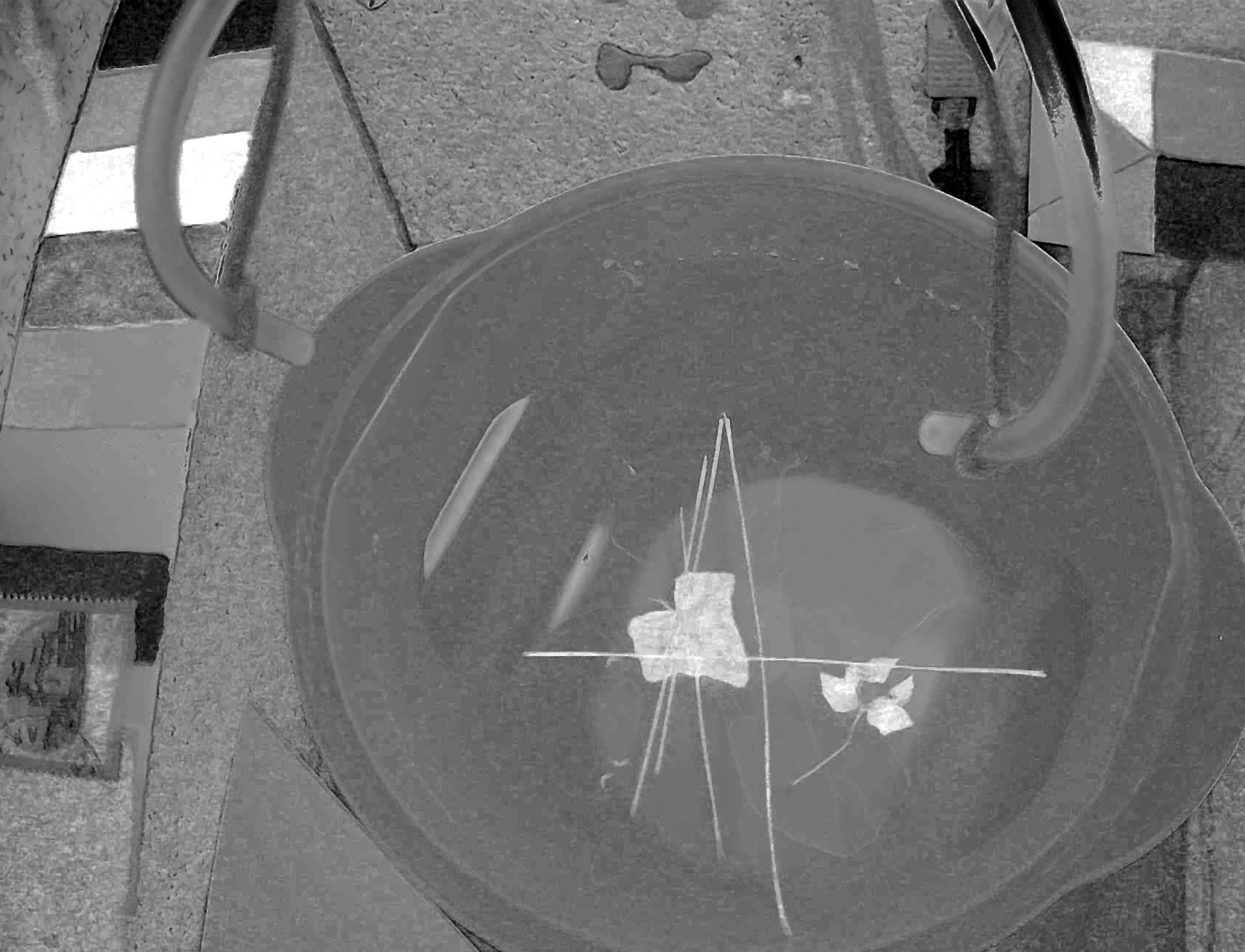

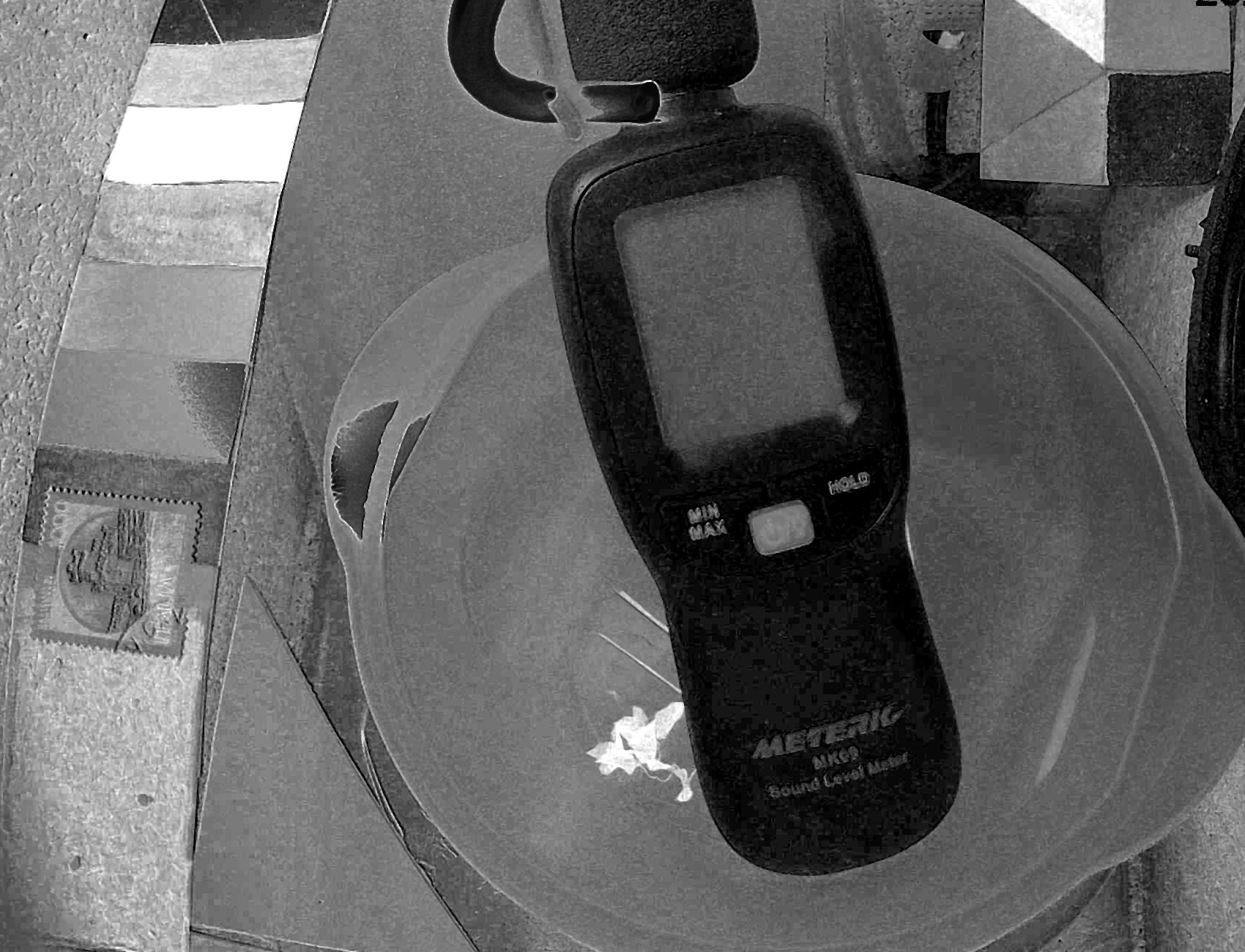

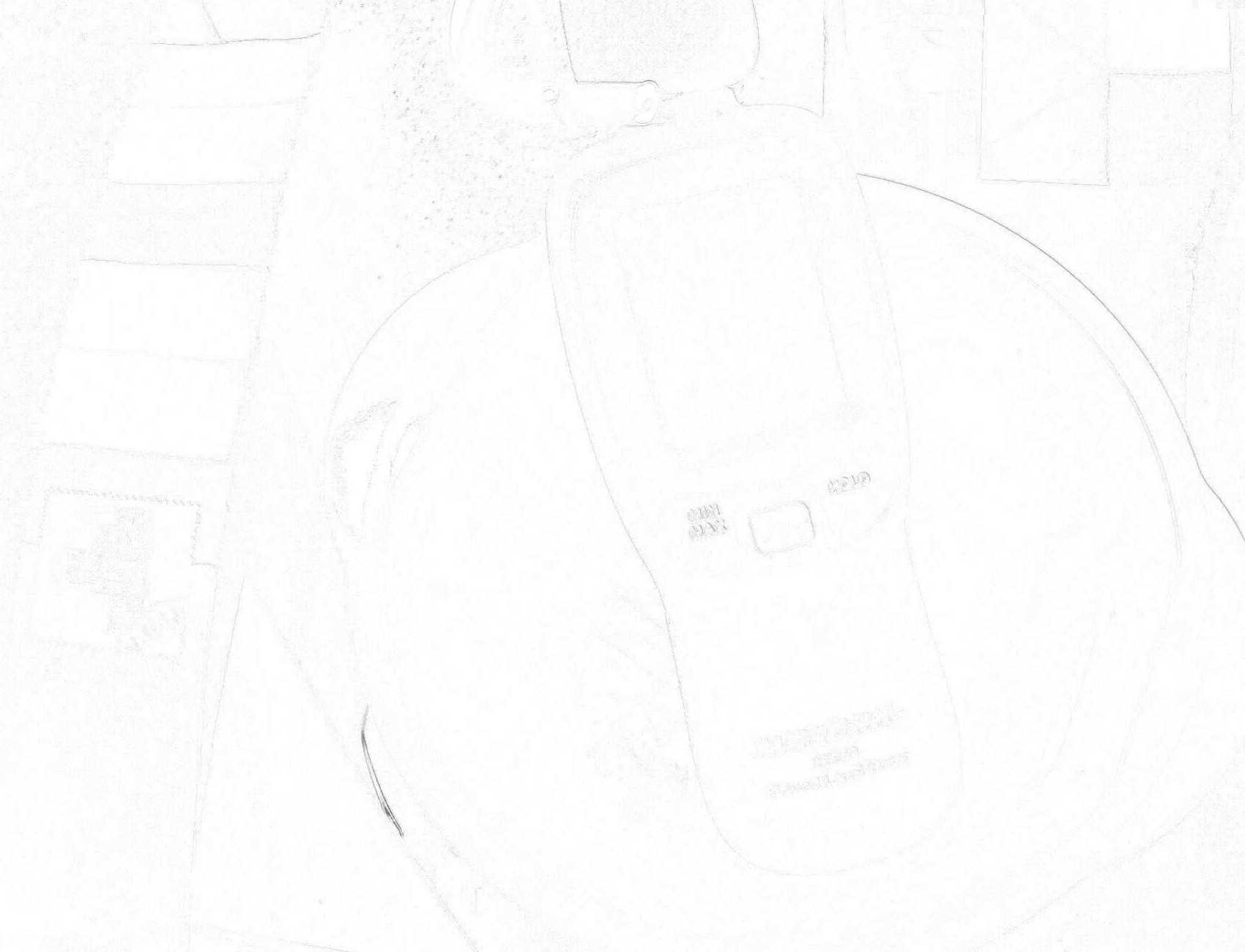

DX DELTA IMAGE IR + SX DELTA IMAGE IR



DX NDVI + SX NDVI (Normalized Difference Vegetation Index)



All is running on a Raspberry3 (with flask micro http server), custom HW, python3 script by GP 2022.04.02 - 2021.08.01 - 2022.08.31 - 2023.07.27 - 2023.12.21

Full revamping of HW and SW (IR & heaters) 2022.03.08 - repairs and cleanup

Addition of peltier cells with internal fans - modifications on irrigation and audio - repairs and cleanup - cameras, audio and water pumps calibration 2023.07

Minor enhancements 2023.09

Addition of red LED illumination for NDVI index - floor heaters 2023.12

From experiment 11, Petri dishes with Agar Agar are used, instead of traditional pots, to avoid problems related to water management

Music by Sara Michieletto
